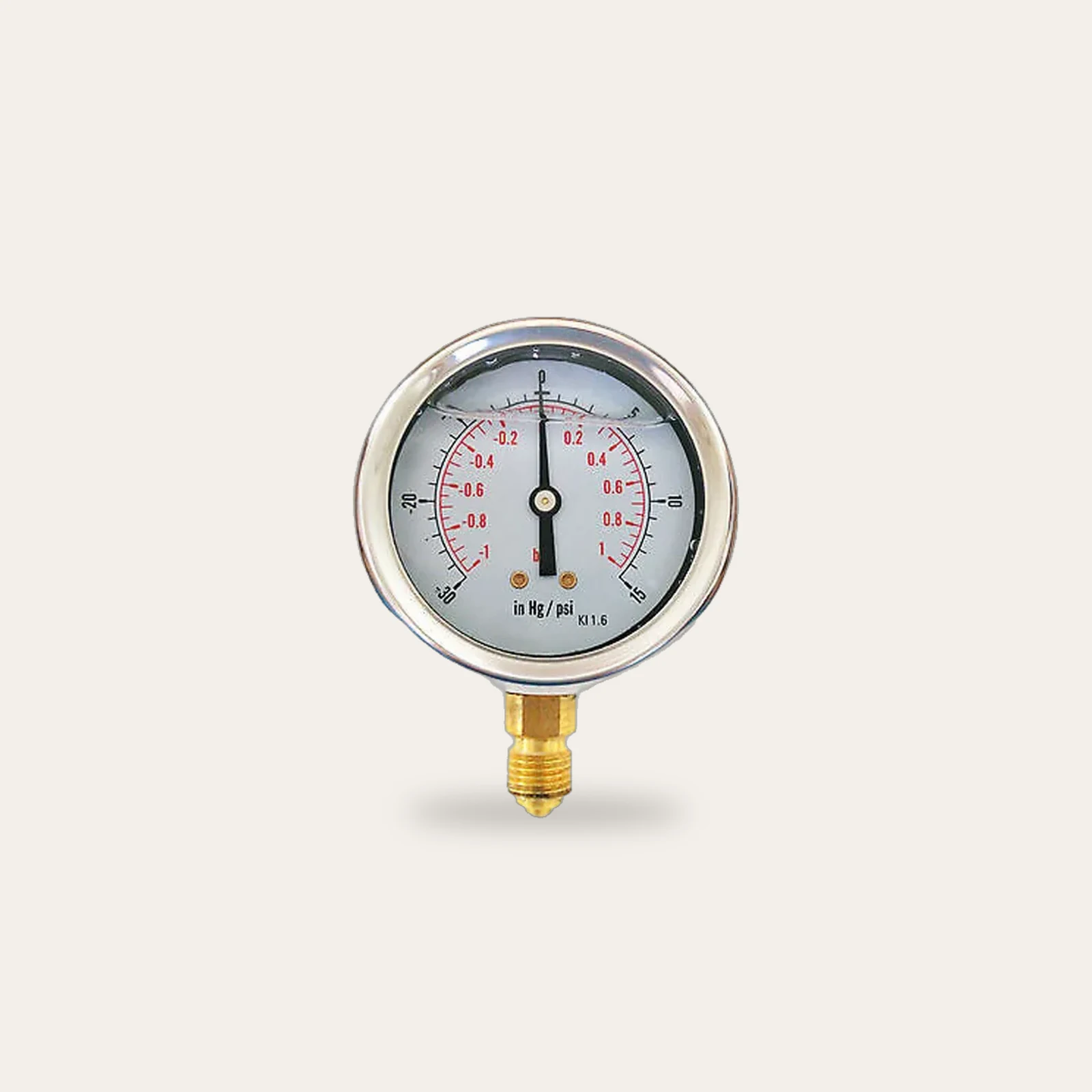

Compound Pressure Gauge
Tell us how many you need. We send a written price, usually the same working day.
Request a quote- Priced for your order: price and delivery in writing before you pay
- Genuine products: brand and model confirmed before you pay
- Delivery across Bangladesh: every order confirmed by phone before dispatch
- Installation and maintenance: by our team, on request
Key features
- Reads both vacuum and pressure
- For fire pump suction lines
- 63 mm or 100 mm dial, ±1% accuracy
Specification
| Specification | Details |
|---|---|
| Product Type | Compound Pressure Gauge |
| Measurement Range | Vacuum: -1 to 0 bar, Pressure: 0 to 10/16/25 bar (varies by model) |
| Accuracy | ±1.0% / ±1.6% (depending on standard) |
| Bourdon Tube Material | Stainless Steel / Brass / Alloy |
| Dial Diameter | 63 mm, 100 mm (varies by model) |
| Connection Size | 1/4" BSP / 1/2" BSP (Threaded) |
| Operating Temperature | -20°C to 60°C |
| Standards | ASME B40.1, EN837-3 |
Description
A compound pressure gauge reads both below and above atmospheric pressure on one dial. It is fitted on the suction side of a fire pump, where the reading can swing from a vacuum when the pump draws from below to positive pressure when the tank is above it.
NFPA 20 requires a compound gauge on the pump suction so the pump's performance can be checked during weekly and annual tests.
Key features
- Vacuum -1 to 0 bar and pressure up to 25 bar
- Stainless steel or brass Bourdon tube
- 63 mm or 100 mm dial
- ¼" or ½" BSP connection
- To ASME B40.1 / EN 837
Applications
- Fire pump suction lines
- Water supply pumps
- HVAC and process systems
Before you order
Tell us the range, the dial size and the connection, and how many gauges you need.
Installation and care
Fit the gauge on the pump suction with an isolating valve or cock, so it can be changed without draining the line. Read it in every pump test, and replace a gauge that does not return to zero.
Common questions
Why use a compound gauge on the pump suction?
The suction pressure can be below or above atmospheric pressure, and a compound gauge reads both.
Which dial size do I need?
63 mm suits panels and small lines. 100 mm is easier to read in a pump room.
Do you have ordinary pressure gauges too?
Ask us with your list, and we quote them.
Specifications vary by model and manufacturer. We confirm the exact model, rating, price and delivery charge in your written quotation.
What is the price of Compound Pressure Gauge in Bangladesh?
It depends on the model and how many you need, so we price it for your order. Press "Request a quote", message us on WhatsApp or call +8801670 468794. We send you a written price, usually the same working day.
Delivery and payment
- Delivery
- Anywhere in Bangladesh
- Delivery charge
- Written in your quotation
- Payment
- Terms written in your quotation
- Returns
- 7 days, unused and in the original box
The quotation lists the price, the delivery charge and the delivery date before you pay anything.
