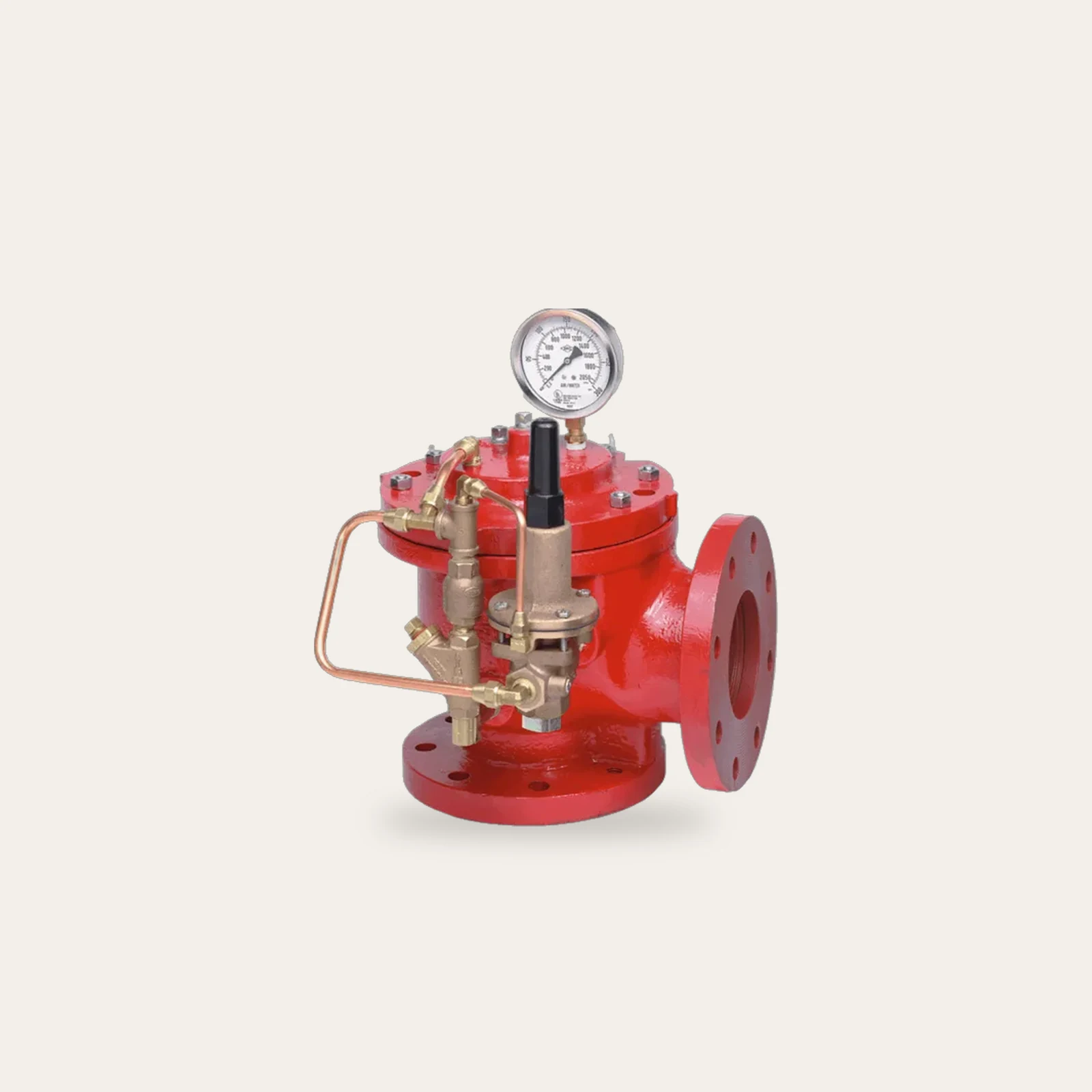

Pressure Relief Valve
Tell us how many you need. We send a written price, usually the same working day.
Request a quote- Priced for your order: price and delivery in writing before you pay
- Genuine products: brand and model confirmed before you pay
- Delivery across Bangladesh: every order confirmed by phone before dispatch
- Installation and maintenance: by our team, on request
Key features
- Protects the system from over-pressure
- Opens automatically at the set pressure
- Adjustable, DN 15 to DN 200
Specification
| Parameter | Specification |
|---|---|
| Valve Type | Pressure Relief Valve (PRV) |
| Operation | Automatic / Spring-loaded |
| Size Range | DN 15 – DN 200 (½″ – 8″) |
| Pressure Range | 0.5 – 25 bar (depending on model) |
| Body Material | Stainless Steel, Carbon Steel, Brass |
| Disc / Seal Material | Stainless Steel, PTFE, NBR |
| End Connection | Flanged / Threaded (ANSI / DIN / BS Standard) |
| Working Temperature | -20°C to +200°C |
| Medium | Water, Oil, Steam, Air, Gas |
| Set Pressure | Adjustable, factory set options available |
| Installation Position | Horizontal / Vertical |
| Standards | ISO, ANSI, DIN, API |
Description
A pressure relief valve opens automatically when the pressure in a system rises above its set point and closes again when it falls. It protects pipes, fittings and sprinklers from damage when a pump runs against a closed system or its pressure rises too high.
On fire pump installations, relief valves are fitted to diesel pump deliveries and wherever the pump's shut-off pressure could exceed the rating of the system.
Key features
- Spring-loaded, automatic operation
- Adjustable set pressure, 0.5 to 25 bar
- Stainless steel, carbon steel or brass body
- Flanged or threaded ends
- Horizontal or vertical installation
Applications
- Diesel fire pump deliveries
- Fire mains and sprinkler systems
- Water supply and process lines
Before you order
Send us the size (DN or inches), the pressure rating, the end connection (flanged, threaded or grooved) and the quantity, from your drawing or equipment schedule. Say if it must be UL / FM listed.
Tell us the set pressure you need.
Installation and care
Fit the valve where the design shows, with its discharge led to a waste cone or drain, so any discharge is visible. Check its setting during maintenance.
Common questions
Where is a relief valve needed on a fire pump?
Where the pump's shut-off pressure could exceed the system's rating, such as on diesel pump deliveries.
Why should its discharge be visible?
So anyone in the pump room can see when it is opening, which shows something is wrong with the pressure.
Can the set pressure be changed?
Yes, within the valve's range, from about 0.5 to 25 bar.
Specifications vary by model and manufacturer. We confirm the exact model, rating, price and delivery charge in your written quotation.
What is the price of Pressure Relief Valve in Bangladesh?
It depends on the model and how many you need, so we price it for your order. Press "Request a quote", message us on WhatsApp or call +8801670 468794. We send you a written price, usually the same working day.
Delivery and payment
- Delivery
- Anywhere in Bangladesh
- Delivery charge
- Written in your quotation
- Payment
- Terms written in your quotation
- Returns
- 7 days, unused and in the original box
The quotation lists the price, the delivery charge and the delivery date before you pay anything.
