Diesel Fire Pump Control Panel
- Controls and monitors the diesel fire pump
- Automatic battery start with two battery banks
- Engine alarms for oil, temperature and overspeed
Price on request
Get a priceFire Pumps & Controllers
End suction, split case and vertical turbine fire pumps, jockey pumps, electric and diesel pump controllers, and control panel spares in Bangladesh.
Products
Electric Fire Pump Controller
- Controls the electric main fire pump
- Starts the pump automatically on pressure drop
- DOL, star-delta or soft starter options
Price on request
Get a price

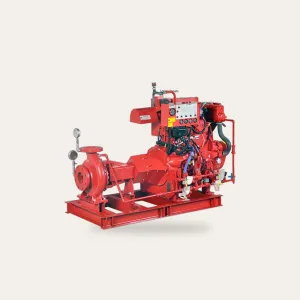

End Suction Fire Pump
- Main fire pump for hydrant and sprinkler systems
- Electric or diesel drive, sized to your building
- Supplied with its controller, sized to your duty point
Price on request
Get a price
Fire Pump Control Panel I/O Board
- Input/output board for fire pump control panels
- Connects sensors, alarms and remote monitoring
- Replacement supplied and fitted
Price on request
Get a price
Fire Pump Control Panel Motherboard
- Replacement main board for fire pump control panels
- Handles automatic and manual pump control
- Supplied and fitted by our technicians
Price on request
Get a price
Horizontal Split Case Fire Pump
- High-capacity main fire pump for large sites
- Double suction impeller for smooth, reliable flow
- Electric or diesel drive, to NFPA 20
Price on request
Get a price
Jockey Pump
- Keeps the fire system pressurised at all times
- Stops the main fire pump starting for small leaks
- Starts and stops automatically with its controller
Price on request
Get a price
Jockey Pump Control Panel
- Starts and stops the jockey pump automatically
- Keeps the fire system under constant pressure
- Overload, short circuit and phase failure protection
Price on request
Get a price
Pressure Transducer
- Measures fire system pressure for the pump controller
- 4 to 20 mA or 0 to 10 V output
- Stainless steel, ±0.5% accuracy
Price on request
Get a price
RPM Sensor
- Measures diesel engine speed for the pump controller
- Magnetic, Hall effect or inductive types
- Supports overspeed and crank detection
Price on request
Get a price
Vertical Turbine Fire Pump
- Fire pump for water drawn from below ground
- Single or multi-stage, up to 5,000 GPM
- Electric or diesel drive, to NFPA 20
Price on request
Get a priceThe fire pump set
A fire pump gives sprinklers, hydrants and hose reels the water pressure they need. Most buildings in Bangladesh use a set of pumps that work together:
- A main electric fire pump that starts when the pressure falls during a fire.
- A diesel fire pump as standby, so the system still works when the power fails.
- A jockey pump, a small pump that keeps the pipes under pressure and makes up small leaks, so the main pump does not start for nothing.
Our guide Fire Pump Guide: Electric, Diesel and Jockey Pumps explains how they work together.
Types of fire pump
- End suction fire pump: compact and common in apartment buildings, offices and smaller factories.
- Horizontal split case fire pump: for larger flows, such as big factories and commercial buildings. The casing opens for service without removing the pipe connections.
- Vertical turbine fire pump: for water that sits below the pump, such as an underground tank, a well or a river.
Controllers and spares
Each pump needs its own controller. An electric fire pump controller starts the electric pump on pressure drop. A diesel fire pump control panel starts the engine and watches its batteries and running state. A jockey pump control panel runs the jockey pump between its start and stop pressures.
When a controller fails, the right spare part often brings it back without replacing the panel. We supply the control panel motherboard, the I/O board, the pressure transducer and the RPM sensor. Send us a photo of the panel and of the old part's label, so we match the model.
How a fire pump is sized
A fire pump is chosen by two numbers: the flow it must deliver and the pressure (head) it must reach at that flow. Both come from the building's fire fighting design. If you have the design or the equipment schedule, send it with your enquiry. If you do not, tell us the type of building, the number of floors and the size of the water tank, and we tell you what is needed to size the pump.
Common questions
Do I need a diesel fire pump as well as an electric one?
A diesel pump keeps the system working during a power cut, which happens often in Bangladesh. Many fire safety designs include one as the standby pump. Check your approved design, or ask us.
What does a jockey pump do?
It keeps the fire pipes full and under pressure. Small leaks and pressure changes are handled by the jockey pump, so the main fire pump only starts when there is a real demand, such as a sprinkler opening.
Can you install and commission the pump set?
Yes, on request. Our team can install the pumps and controllers, connect them and run a test. Ask for it with your quote.
What is the price of a fire pump in Bangladesh?
It depends on the type, the flow and pressure, the driver (electric or diesel) and the brand. Send us the duty point or your design, and we send a written quotation.
