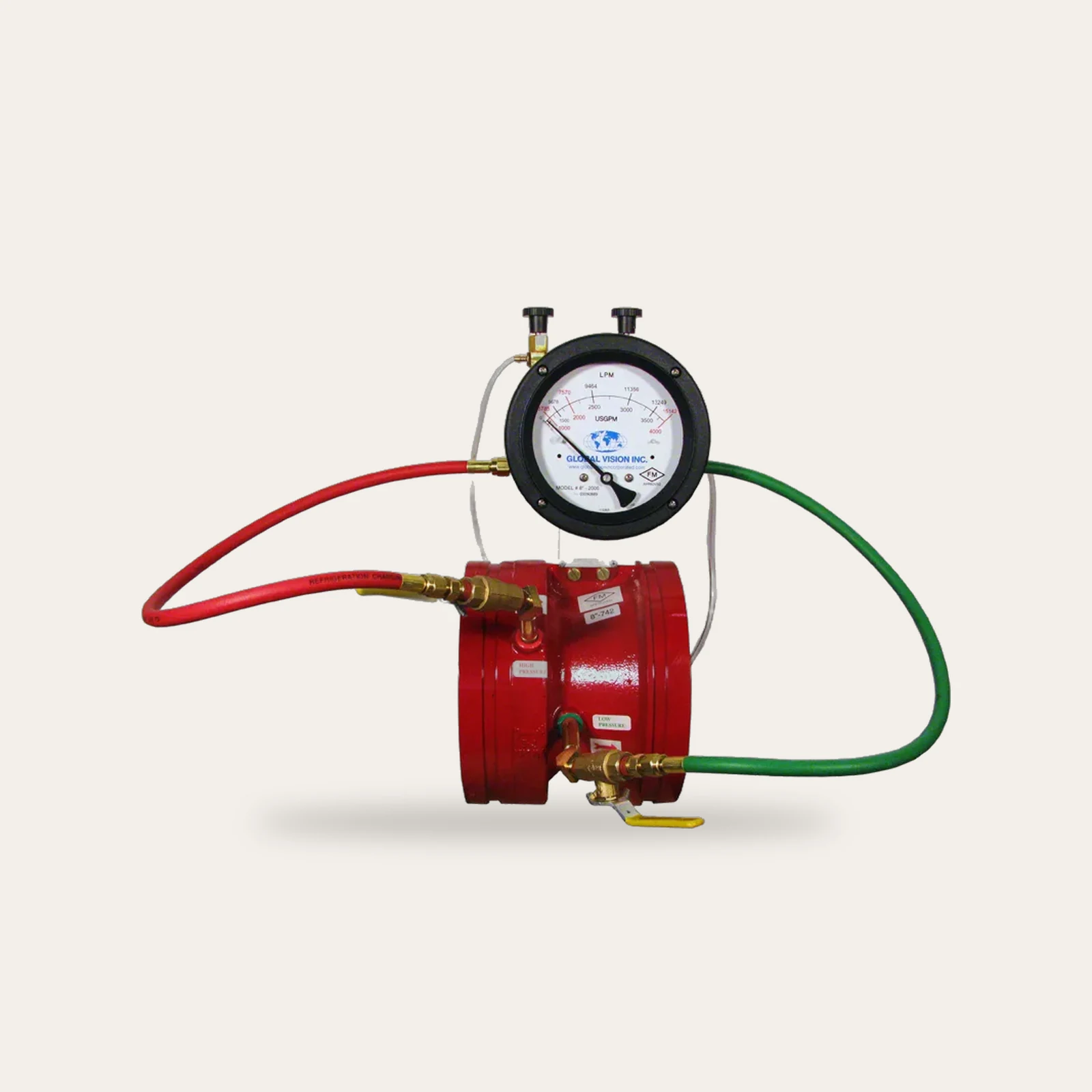

Flow Meter
Tell us how many you need. We send a written price, usually the same working day.
Request a quote- Priced for your order: price and delivery in writing before you pay
- Genuine products: brand and model confirmed before you pay
- Delivery across Bangladesh: every order confirmed by phone before dispatch
- Installation and maintenance: by our team, on request
Key features
- Measures water flow in the pipeline
- Used to test fire pump performance
- Electromagnetic, ultrasonic or turbine types
Specification
| Parameter | Specification |
|---|---|
| Meter Type | Electromagnetic / Ultrasonic / Turbine / Differential Pressure |
| Flow Range | 0.1 – 5000 m³/h (depends on type) |
| Pipe Size | DN 15 – DN 600 (1″ – 24″) |
| Accuracy | ±0.5% – ±2% (type dependent) |
| Body Material | Stainless Steel, Brass, Plastic (PP/ PVC) |
| Liner Material | PTFE / Rubber / Ceramic (depending on type) |
| Display Type | Digital / Analog / Remote Signal |
| Signal Output | 4–20 mA, Pulse, Modbus, HART (optional) |
| Working Pressure | Up to 25 bar (depending on type) |
| Operating Temperature | -20°C to +180°C (type dependent) |
| Installation Position | Horizontal / Vertical |
| Medium | Water, Chemicals, Oil, Gas, Steam |
| Standards | ISO, ANSI, DIN, API (type dependent) |
Description
A flow meter measures how much water passes through a pipe. In a fire pump room it is installed on the test line, so the pump's flow can be measured during the annual performance test that NFPA 20 requires, without running water to waste through hoses.
We supply electromagnetic, ultrasonic and turbine meters with local displays or signal outputs, chosen for the pipe size and the flow range to be measured.
Key features
- Flow up to 5,000 m³/h, type dependent
- DN 15 to DN 600
- ±0.5% to ±2% accuracy
- Digital display or 4 to 20 mA, pulse or Modbus output
- Horizontal or vertical installation
Applications
- Fire pump test lines
- Water supply and distribution
- Industrial process water
Before you order
Tell us the pipe size, the flow range to measure and the output you need (display only, 4 to 20 mA, pulse or Modbus). For a fire pump test line, send the pump's rated flow.
Installation and care
Fit the meter with the straight pipe lengths before and after it that the maker specifies, so the reading is accurate. Use it in each annual pump test, and have it checked as the maker recommends.
Common questions
Why is a flow meter fitted on a fire pump test line?
So the pump's flow can be measured in its annual test without running water to waste through hoses.
Which type of meter do I need?
Electromagnetic, ultrasonic or turbine, chosen for the pipe size and the flow range.
Can it send readings to a BMS?
Yes, with a 4 to 20 mA, pulse or Modbus output.
Specifications vary by model and manufacturer. We confirm the exact model, rating, price and delivery charge in your written quotation.
What is the price of Flow Meter in Bangladesh?
It depends on the model and how many you need, so we price it for your order. Press "Request a quote", message us on WhatsApp or call +8801670 468794. We send you a written price, usually the same working day.
Delivery and payment
- Delivery
- Anywhere in Bangladesh
- Delivery charge
- Written in your quotation
- Payment
- Terms written in your quotation
- Returns
- 7 days, unused and in the original box
The quotation lists the price, the delivery charge and the delivery date before you pay anything.
