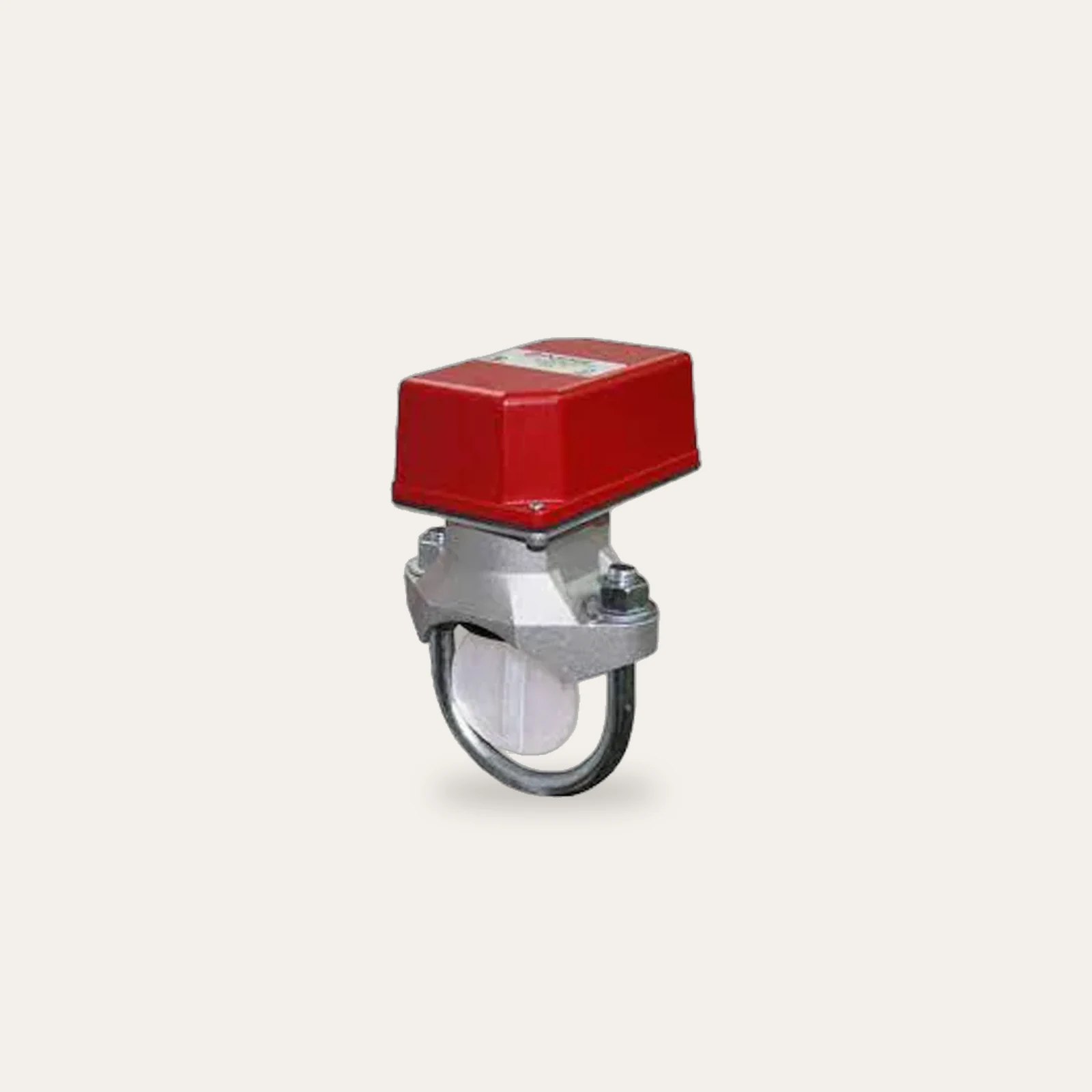

Water Flow Switch
Tell us how many you need. We send a written price, usually the same working day.
Request a quote- Priced for your order: price and delivery in writing before you pay
- Genuine products: brand and model confirmed before you pay
- Delivery across Bangladesh: every order confirmed by phone before dispatch
- Installation and maintenance: by our team, on request
Key features
- Signals the fire alarm when sprinkler water flows
- Paddle type, DN 25 to DN 300
- Shows which zone has operated
Specification
| Parameter | Specification |
|---|---|
| Device Type | Water Flow Switch |
| Sensing Method | Paddle Type / Vane Type |
| Pipe Size Range | DN 25 – DN 300 (1″ – 12″) |
| Body Material | Brass / Stainless Steel / Plastic |
| Switch Contact | SPDT / DPDT |
| Voltage Rating | 24V / 110V / 220V AC/DC |
| Current Rating | Up to 10A |
| Working Pressure | Up to 20 bar |
| Operating Temperature | -10°C to +120°C |
| Installation Position | Horizontal / Vertical |
| Medium | Water / Fire Water |
| Enclosure Protection | IP54 / IP65 |
| Standards | UL / FM / ISO (model dependent) |
Description
A water flow switch detects water moving in a sprinkler pipe and sends a signal to the fire alarm panel. When a sprinkler head opens in a fire, the flow switch tells the panel which zone is flowing, so the alarm sounds and the building knows where to go.
It is fitted in each zone control valve set and on the riser. A built-in delay stops short surges of pressure from causing false alarms.
Key features
- Paddle or vane sensing
- Adjustable delay against false alarms
- SPDT or DPDT contacts
- Up to 20 bar working pressure
- IP54 or IP65 enclosure, UL / FM listed models available
Applications
- Sprinkler zone control valves
- Sprinkler risers
- Fire alarm integration
Before you order
Send us the pipe size, the number of switches and the panel it reports to. Tell us if you need UL / FM listed switches.
Installation and care
Fit the switch in a straight run of pipe, with the paddle sized for the pipe, and set the delay to stop false alarms from surges. Test it with the zone test valve during routine maintenance.
Common questions
Why does the flow switch have a delay?
Short surges of pressure can move the paddle without a fire. The delay ignores them, so only a steady flow raises the alarm.
Where are flow switches fitted?
In each zone control valve set and on the sprinkler riser.
How is it connected to the fire alarm?
Its contacts are wired to the panel, or to an input module on an addressable system.
Specifications vary by model and manufacturer. We confirm the exact model, rating, price and delivery charge in your written quotation.
What is the price of Water Flow Switch in Bangladesh?
It depends on the model and how many you need, so we price it for your order. Press "Request a quote", message us on WhatsApp or call +8801670 468794. We send you a written price, usually the same working day.
Delivery and payment
- Delivery
- Anywhere in Bangladesh
- Delivery charge
- Written in your quotation
- Payment
- Terms written in your quotation
- Returns
- 7 days, unused and in the original box
The quotation lists the price, the delivery charge and the delivery date before you pay anything.
