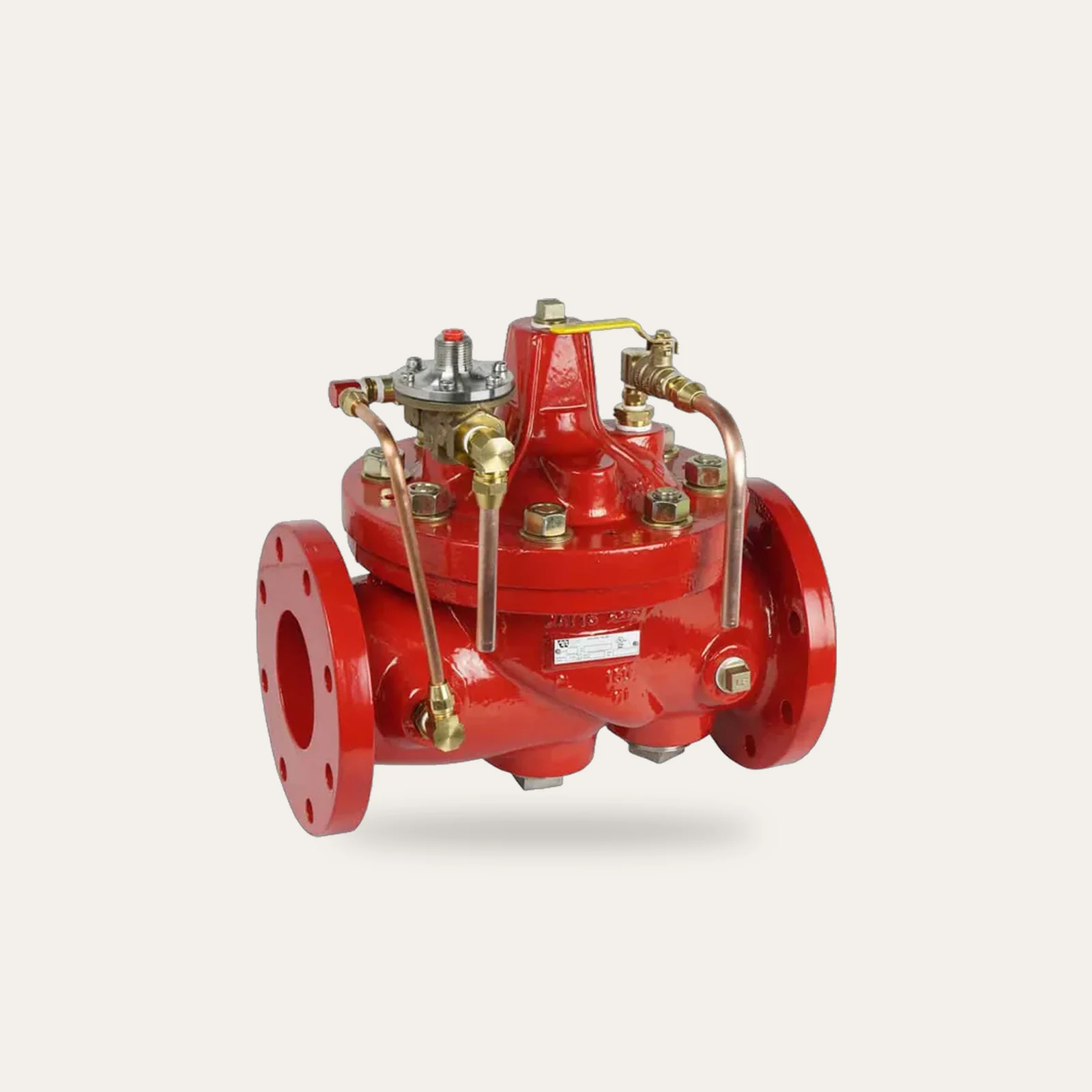

Deluge Valve
Tell us how many you need. We send a written price, usually the same working day.
Request a quote- Priced for your order: price and delivery in writing before you pay
- Genuine products: brand and model confirmed before you pay
- Delivery across Bangladesh: every order confirmed by phone before dispatch
- Installation and maintenance: by our team, on request
Key features
- Floods a whole area with water at once
- Opened by detection, electric or pneumatic
- For transformers and high-hazard areas
Specification
| Specification | Details |
|---|---|
| Product Type | Deluge Valve |
| Material | Cast Iron / Stainless Steel / Bronze |
| Operating Pressure | 0.5 – 25 bar (depending on model) |
| Connection Size | DN 50 – DN 300 (as required) |
| Activation | Electric / Pneumatic / Hydraulic |
| Temperature Rating | -20°C to +80°C |
| Compliance | UL, FM, NFPA 13, IS or local standards |
| Mounting | Floor / Piping Mounted |
Description
A deluge valve controls a deluge system, in which every nozzle is open. When the fire detection system operates, the valve opens and water discharges from all the nozzles together, covering the whole area at once.
It is used where a fire can spread too fast for ordinary sprinklers: transformers, fuel and chemical stores, and cooling towers.
Key features
- Electric, pneumatic or hydraulic release
- Manual emergency release
- DN 50 to DN 300
- Cast iron, stainless steel or bronze
- UL / FM / NFPA 13 listed models available
Applications
- Transformers and switchyards
- Fuel and chemical storage
- Cooling towers and conveyors
- Foam-water systems
Before you order
Send us the size (DN or inches), the pressure rating, the end connection (flanged, threaded or grooved) and the quantity, from your drawing or equipment schedule. Say if it must be UL / FM listed.
Tell us the release type (electric, pneumatic or hydraulic) and the detection system that will trigger it.
Installation and care
The valve is installed with its trim, release device and a manual release, and connected to the detection system or panel. Test it as the design sets, with care, because a deluge test discharges water from every nozzle.
Common questions
Where is a deluge system used?
Where fire can spread fast: transformers, fuel and chemical stores, and cooling towers.
How does a deluge valve open?
When the detection system operates, the release device opens the valve, and water flows through all the open nozzles at once.
Can it be opened by hand?
Yes. It has a manual emergency release.
Specifications vary by model and manufacturer. We confirm the exact model, rating, price and delivery charge in your written quotation.
What is the price of Deluge Valve in Bangladesh?
It depends on the model and how many you need, so we price it for your order. Press "Request a quote", message us on WhatsApp or call +8801670 468794. We send you a written price, usually the same working day.
Delivery and payment
- Delivery
- Anywhere in Bangladesh
- Delivery charge
- Written in your quotation
- Payment
- Terms written in your quotation
- Returns
- 7 days, unused and in the original box
The quotation lists the price, the delivery charge and the delivery date before you pay anything.
