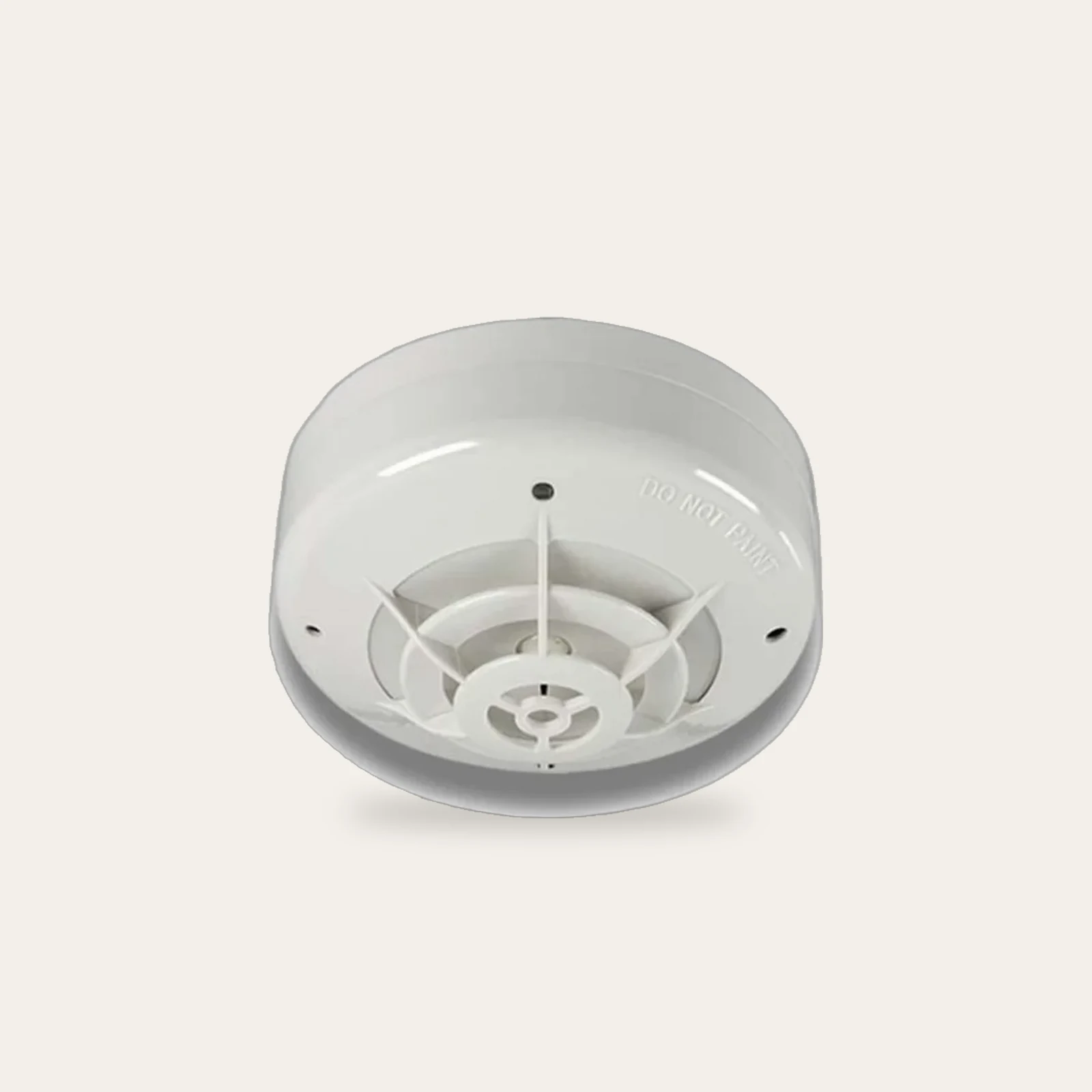

Heat Detector
Tell us how many you need. We send a written price, usually the same working day.
Request a quote- Priced for your order: price and delivery in writing before you pay
- Genuine products: brand and model confirmed before you pay
- Delivery across Bangladesh: every order confirmed by phone before dispatch
- Installation and maintenance: by our team, on request
Key features
- Detects fire by heat where smoke detectors would false-alarm
- Fixed temperature or rate-of-rise
- For kitchens, generator rooms and dusty areas
Specification
| Parameter | Specification |
|---|---|
| Detector Type | Fixed Temperature / Rate-of-Rise |
| Temperature Rating | 57°C / 68°C / 79°C / 93°C (custom options available) |
| Operating Principle | Thermal / Rate-of-Rise |
| Supply Voltage | 24V DC (typical) |
| Current Consumption | < 10 mA |
| Detection Range | Up to 12 m radius (depending on model) |
| Response Time | < 30 seconds (typical) |
| Material | Flame-retardant plastic with metal base |
| Mounting | Ceiling / Wall Mounted |
| Environmental Protection | IP42 / IP44 (model dependent) |
| Standards | UL / FM / LPCB / EN 54 |
Description
A heat detector raises the fire alarm when the temperature at the ceiling passes a fixed point or rises unusually fast. It is used where smoke, steam or dust would set off a smoke detector: kitchens, boiler and generator rooms, car parks and dusty production areas.
Rate-of-rise detectors respond early to a fast-growing fire; fixed temperature detectors suit places where the temperature changes quickly in normal use.
Key features
- Fixed temperature or rate-of-rise
- 57, 68, 79 or 93 °C ratings
- 24 V DC, low current
- Conventional and addressable versions
- UL / FM / LPCB / EN 54 approved models
Applications
- Kitchens and canteens
- Generator and boiler rooms
- Car parks
- Dusty production areas
Before you order
Tell us the fire alarm panel's brand and model, so the detector matches it, and whether the system is conventional or addressable. Then choose the type: rate-of-rise for most rooms where smoke detectors would false alarm, and fixed temperature for places such as kitchens and boiler rooms, where the temperature can jump quickly in normal use. The temperature rating is chosen a little above the highest normal temperature in the room. Our guide Fire Alarm System: Addressable or Conventional? explains the two systems.
Installation and care
Mount the detector on the ceiling, away from air conditioner outlets and fans that blow heat away from it, and follow the spacing in the system design. Test each detector during routine maintenance with a heat tester, and keep it free of paint and dust. Our team can install and test detectors on request.
Common questions
Heat detector or smoke detector?
A smoke detector warns earlier in most rooms. A heat detector is used where smoke, steam or dust are normal, because it will not false alarm there.
What does rate-of-rise mean?
A rate-of-rise detector alarms when the temperature climbs unusually fast, which catches a growing fire early. Most also alarm at a fixed temperature.
Will it work with my panel?
It must match the panel's brand and protocol. Send us the panel model and we confirm the right detector.
Specifications vary by model and manufacturer. We confirm the exact model, rating, price and delivery charge in your written quotation.
What is the price of Heat Detector in Bangladesh?
It depends on the model and how many you need, so we price it for your order. Press "Request a quote", message us on WhatsApp or call +8801670 468794. We send you a written price, usually the same working day.
Delivery and payment
- Delivery
- Anywhere in Bangladesh
- Delivery charge
- Written in your quotation
- Payment
- Terms written in your quotation
- Returns
- 7 days, unused and in the original box
The quotation lists the price, the delivery charge and the delivery date before you pay anything.
