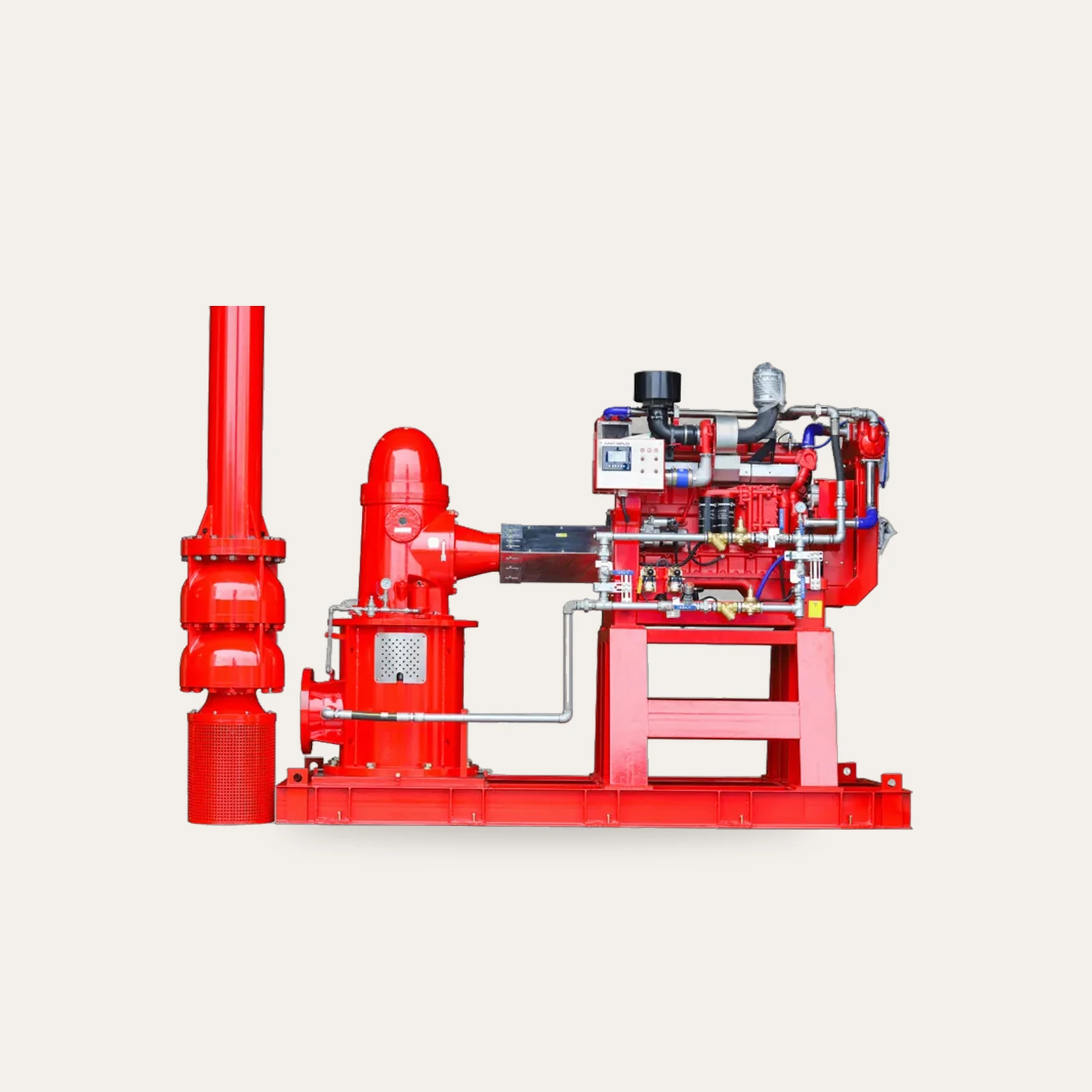

Vertical Turbine Fire Pump
Tell us how many you need. We send a written price, usually the same working day.
Request a quote- Priced for your order: price and delivery in writing before you pay
- Genuine products: brand and model confirmed before you pay
- Delivery across Bangladesh: every order confirmed by phone before dispatch
- Installation and maintenance: by our team, on request
Key features
- Fire pump for water drawn from below ground
- Single or multi-stage, up to 5,000 GPM
- Electric or diesel drive, to NFPA 20
Specification
| Specification | Details |
|---|---|
| Pump Type | Vertical Turbine Fire Pump |
| Flow Rate | 100 – 5000 GPM (model dependent) |
| Head | Up to 300 m |
| Number of Stages | Single / Multi-stage |
| Bowl Material | Cast Iron / Stainless Steel / Bronze |
| Shaft Material | Stainless Steel |
| Power Source | Electric Motor / Diesel Engine |
| Mounting | Vertical |
| Standards | NFPA 20, UL, FM (model dependent) |
Description
A vertical turbine fire pump lifts water from a source below the pump: an underground tank, a sump, a well or a river. The pump bowls sit under the water, so the pump never needs priming and is always ready to start.
It takes little floor space in the pump room, which makes it a good fit where the water supply is below ground level. We select the number of stages and the drive to match the depth of the water and the pressure the system needs.
Key features
- Flow from 100 to 5,000 GPM, model dependent
- Head up to 300 m
- Single or multi-stage bowl assembly
- No priming needed
- Built to NFPA 20, UL / FM listed models available
Applications
- Underground fire water tanks
- Wells, sumps and rivers
- Industrial plants and power stations
- Large factories
Before you order
Send us the duty point (flow and head), the depth from the pump floor to the lowest water level, and the drive you need. The number of stages is chosen from the depth and the pressure. Our Fire Pump Guide explains how fire pumps work together.
Installation and care
The pump hangs from its discharge head over the tank, sump or well, with the bowls below the lowest water level. Check the water level, the packing and the bearings regularly, and test the pump's performance each year. Our team can install and commission vertical turbine pumps on request.
Common questions
When do I need a vertical turbine pump?
When the water source is below the pump, such as an underground tank, a sump, a well or a river.
Does it need priming?
No. The pump bowls sit under the water, so it is always ready to start.
How deep can it lift water?
It depends on the number of stages. Send us the depth and the pressure needed, and we select the pump.
Specifications vary by model and manufacturer. We confirm the exact model, rating, price and delivery charge in your written quotation.
What is the price of Vertical Turbine Fire Pump in Bangladesh?
It depends on the model and how many you need, so we price it for your order. Press "Request a quote", message us on WhatsApp or call +8801670 468794. We send you a written price, usually the same working day.
Delivery and payment
- Delivery
- Anywhere in Bangladesh
- Delivery charge
- Written in your quotation
- Payment
- Terms written in your quotation
- Returns
- 7 days, unused and in the original box
The quotation lists the price, the delivery charge and the delivery date before you pay anything.
