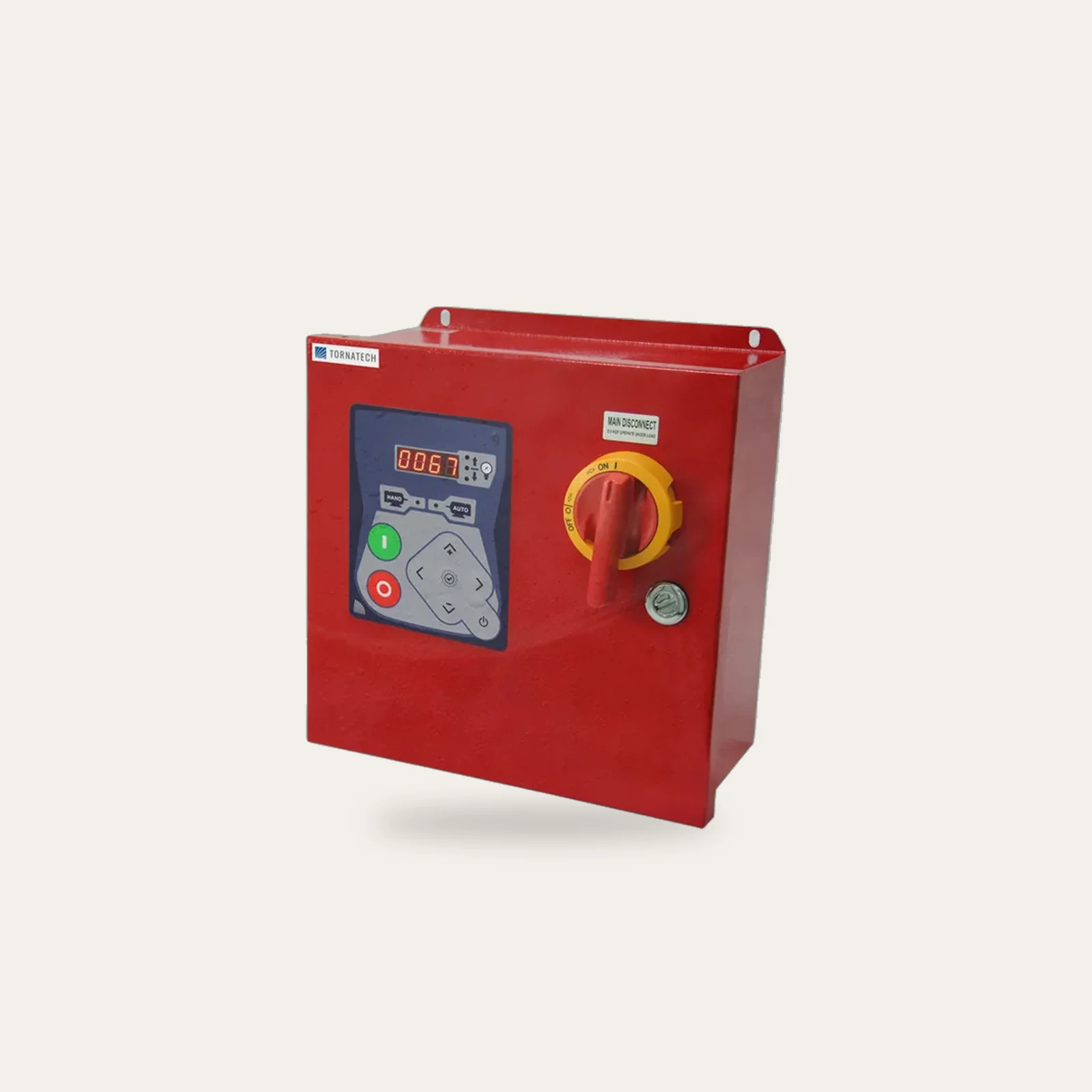

Jockey Pump Control Panel
Tell us how many you need. We send a written price, usually the same working day.
Request a quote- Priced for your order: price and delivery in writing before you pay
- Genuine products: brand and model confirmed before you pay
- Delivery across Bangladesh: every order confirmed by phone before dispatch
- Installation and maintenance: by our team, on request
Key features
- Starts and stops the jockey pump automatically
- Keeps the fire system under constant pressure
- Overload, short circuit and phase failure protection
Specification
| Specification | Details |
|---|---|
| Product Type | Jockey Pump Control Panel |
| Control Mode | Automatic / Manual |
| Voltage | 220V / 380V / 415V AC |
| Phase | Single Phase / Three Phase |
| Frequency | 50 Hz / 60 Hz |
| Pump Capacity | As per Jockey Pump Rating |
| Protection Features | Overload, Short Circuit, Phase Failure |
| Enclosure | MS Powder Coated / Stainless Steel |
| Standards | NFPA 20 (system dependent) |
Description
The jockey pump control panel runs the small pump that keeps a hydrant or sprinkler system full and pressurised. When a small leak lets the pressure drop, the panel starts the jockey pump and stops it again once the pressure is back.
That stops the main fire pump from starting for every minor loss of pressure, which saves power and wear. The panel protects the motor against overload, short circuit and phase failure, and can be switched to manual for testing.
Key features
- Automatic and manual operation
- Pressure switch or transducer control
- Overload, short circuit and phase failure protection
- Single or three phase, 220 to 415 V
- Powder coated steel or stainless steel enclosure
Applications
- Fire pump rooms
- Hydrant and sprinkler systems
- Factories and commercial buildings
Before you order
Tell us the jockey pump motor's power, voltage and phase, and whether you want pressure switch or transducer control. For a replacement, send the old panel's make and model.
Installation and care
The panel is mounted in the pump room near the pump, with the pressure sensing line connected to the system. Its start and stop pressures are set as the design shows, above those of the main pump. Check its operation during the weekly pump run.
Common questions
Can the jockey pump be run by hand?
Yes. The panel has a manual mode for testing and maintenance.
What protection does the panel give?
Protection against overload, short circuit and phase failure, so the motor is not damaged.
Transducer or pressure switch?
A transducer gives a continuous reading and lets set points be changed on the panel. A pressure switch is simpler. Both work.
Specifications vary by model and manufacturer. We confirm the exact model, rating, price and delivery charge in your written quotation.
What is the price of Jockey Pump Control Panel in Bangladesh?
It depends on the model and how many you need, so we price it for your order. Press "Request a quote", message us on WhatsApp or call +8801670 468794. We send you a written price, usually the same working day.
Delivery and payment
- Delivery
- Anywhere in Bangladesh
- Delivery charge
- Written in your quotation
- Payment
- Terms written in your quotation
- Returns
- 7 days, unused and in the original box
The quotation lists the price, the delivery charge and the delivery date before you pay anything.
