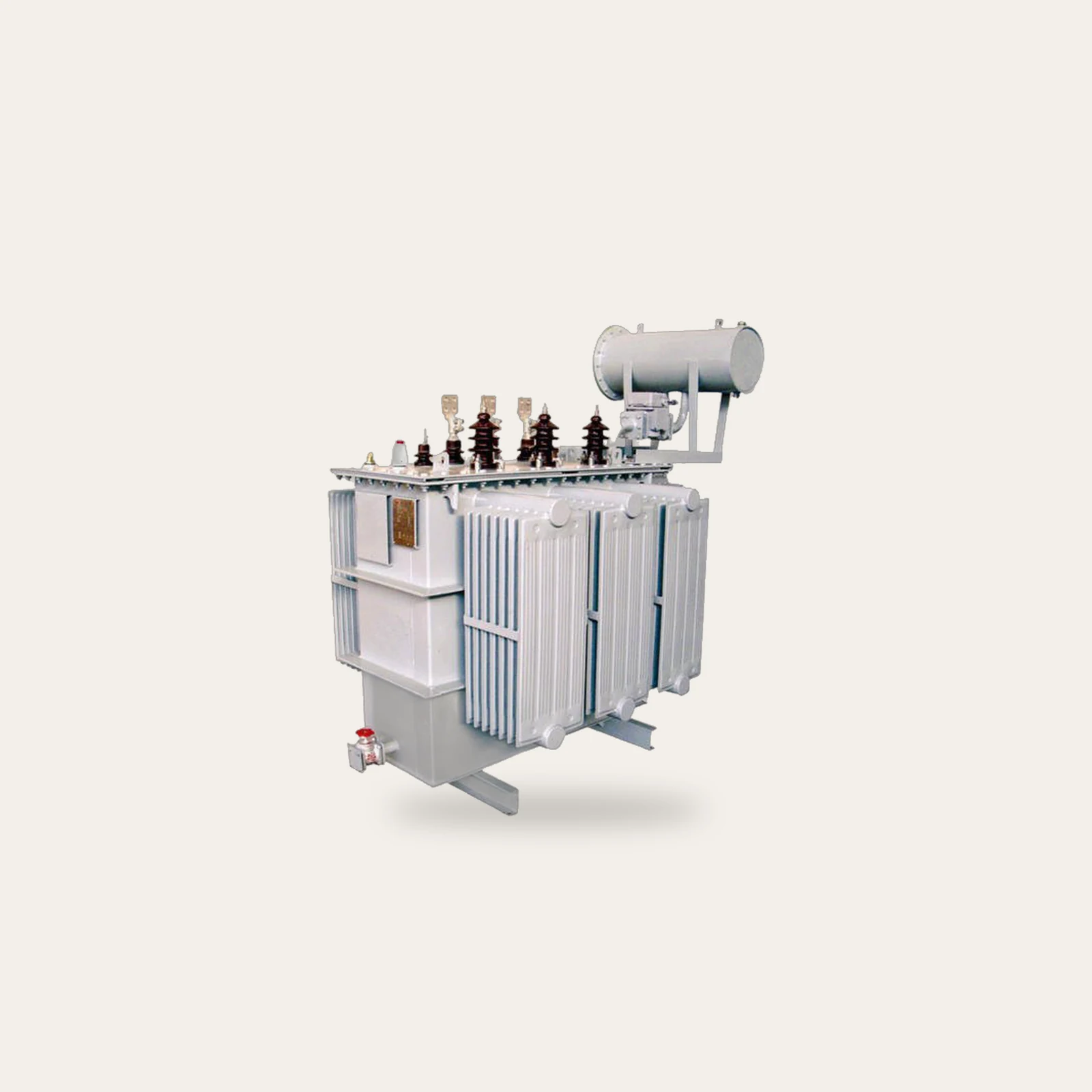

Electrical Power Transformer
Tell us how many you need. We send a written price, usually the same working day.
Request a quote- Priced for your order: price and delivery in writing before you pay
- Genuine products: brand and model confirmed before you pay
- Delivery across Bangladesh: every order confirmed by phone before dispatch
- Installation and maintenance: by our team, on request
Key features
- Distribution transformers from 25 to 5,000 kVA
- Oil-immersed or dry type
- Supplied across Bangladesh
Specification
| Specification | Details |
|---|---|
| Product Type | Electrical Power Transformer |
| Transformer Type | Oil-Immersed / Dry-Type |
| Rated Power | 25 kVA – 5000 kVA (or as required) |
| Primary Voltage | Up to 33 kV (typical) |
| Secondary Voltage | As per system requirement |
| Frequency | 50 / 60 Hz |
| Cooling Method | ONAN / ONAF / Air Cooled |
| Winding Material | Copper / Aluminum |
| Compliance | IEC 60076, IS, ANSI or local standards |
Description
A power transformer steps the utility's high voltage down to the voltage a building uses. Factories, commercial buildings and apartment blocks with their own substation need one sized to their load.
We supply oil-immersed and dry-type transformers, with copper or aluminium windings, for substations and standalone use.
Key features
- 25 to 5,000 kVA
- Oil-immersed (ONAN / ONAF) or dry type
- Primary up to 33 kV
- Copper or aluminium windings
- To IEC 60076
Applications
- Factory and industrial substations
- Commercial buildings
- Apartment complexes
Before you order
Tell us the rating (kVA), the primary and secondary voltages, oil-immersed or dry type, and the site. The rating comes from your building's load. Dry type transformers are used indoors; oil-immersed ones are common outdoors and in substations.
Installation and care
The transformer is installed in its substation or room with the right clearances, earthing and protection. Oil-immersed units need regular checks of oil level and condition. Our team can install transformers on request.
Common questions
What size transformer do I need?
It is chosen from your building's total load, with allowance for growth. Send us your load schedule, and we suggest a rating.
Oil-immersed or dry type?
Dry type transformers suit indoor rooms where oil is a fire risk. Oil-immersed transformers are common outdoors and for larger ratings.
Do you supply the substation as well?
Yes. See our electrical substation.
Specifications vary by model and manufacturer. We confirm the exact model, rating, price and delivery charge in your written quotation.
What is the price of Electrical Power Transformer in Bangladesh?
It depends on the model and how many you need, so we price it for your order. Press "Request a quote", message us on WhatsApp or call +8801670 468794. We send you a written price, usually the same working day.
Delivery and payment
- Delivery
- Anywhere in Bangladesh
- Delivery charge
- Written in your quotation
- Payment
- Terms written in your quotation
- Returns
- 7 days, unused and in the original box
The quotation lists the price, the delivery charge and the delivery date before you pay anything.
